C# – How to make items of ListView fill the entire list width

One thing that happened to me often was the items of an ItemsControl derivative (like a ListBox or ListView) not fill the full width of the list when was defined a DataTemplate for the ItemTemplate of the list.

For example, the Xaml code below:

<ListView ItemsSource="{Binding Path=Items, Source={StaticResource contentPageVM}}"
          Width="250" Margin="0 20 0 20"
          Grid.Row="1" Background="BurlyWood"
          HorizontalContentAlignment="Stretch">
    <ListView.ItemTemplate>
        <DataTemplate>
            <Grid HorizontalAlignment="Stretch">
                <TextBlock Text="{Binding Name}" HorizontalAlignment="Left" VerticalAlignment="Center" Margin="0 0 20 0"></TextBlock>
                <TextBlock  Text="&#xe937;" HorizontalAlignment="Right" FontFamily="Segoe MDL2 Assets" VerticalAlignment="Center"></TextBlock>
            </Grid>
        </DataTemplate>
    </ListView.ItemTemplate>
</ListView>

… produces this:

Universal ListView Control
ListView with items not filling full width.

It should be noted that despite <Grid HorizontalAlignment=”Stretch”>, that produces no effect to make the items occupied the entire width of the list.

The solution is to set a style to the ItemContainerStyle for the ListViewItem with the HorizontalContentAlignment=”Stretch”, as exemplified below:

<ListView.ItemContainerStyle>
    <Style TargetType="ListViewItem">
        <Setter Property="HorizontalContentAlignment" Value="Stretch" />
    </Style>
</ListView.ItemContainerStyle>

So if we complete the initial code, we have:

<ListView ItemsSource="{Binding Path=Items, Source={StaticResource contentPageVM}}"
          Width="250" Margin="0 20 0 20"
          Grid.Row="1" Background="BurlyWood"
          HorizontalContentAlignment="Stretch">
    <ListView.ItemContainerStyle>
        <Style TargetType="ListViewItem">
            <Setter Property="HorizontalContentAlignment" Value="Stretch" />
        </Style>
    </ListView.ItemContainerStyle>
    <ListView.ItemTemplate>
        <DataTemplate>
            <Grid HorizontalAlignment="Stretch">
                <TextBlock Text="{Binding Name}" HorizontalAlignment="Left" VerticalAlignment="Center" Margin="0 0 20 0"></TextBlock>
                <TextBlock  Text="&#xe937;" HorizontalAlignment="Right" FontFamily="Segoe MDL2 Assets" VerticalAlignment="Center"></TextBlock>
            </Grid>
        </DataTemplate>
    </ListView.ItemTemplate>
</ListView>

.. and now we have the desired result

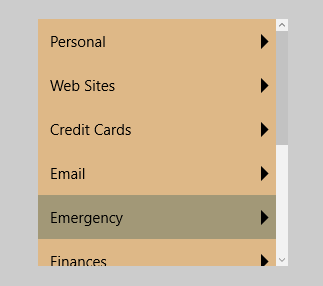

Universal ListView Control
ListView with items filling full width.
